Impact of Hydrolysis Pretreatment on the Compostability of Biodegradable Poly(caprolactone) and Poly(lactic acid) Films

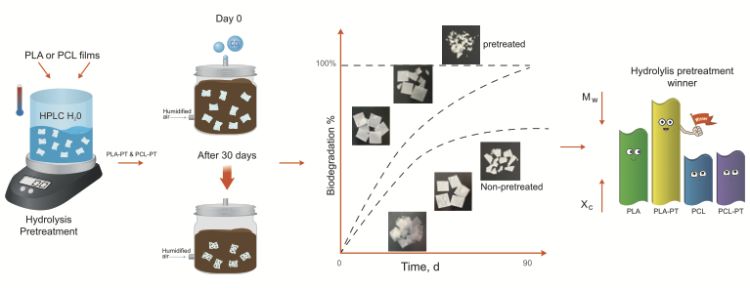

Hydrolysis pretreatment was performed on PLA and PCL to accelerate biodegradation, reducing molecular weight and increasing crystallinity. Hydrolysis pretreatment notably enhanced biodegradation in PLA and exhibited minimal impact on PCL.

Updated from an original article written by Rafael Auras.

Hydrolysis pretreatment was performed on PLA and PCL to accelerate biodegradation, resulting in reduced molecular weight (Mw) and increased crystallinity (Xc). Specifically, the amorphous regions of PLA were significantly disrupted by the pretreatment, leading to less stable crystalline structures, which positively influenced the overall degradation. Consequently, hydrolysis pretreatment notably enhanced biodegradation in PLA, whereas it exhibited minimal impact on PCL.
Hydrolysis pretreatment was performed on PLA and PCL to accelerate biodegradation, resulting in reduced molecular weight (Mw) and increased crystallinity (Xc). Specifically, the amorphous regions of PLA were significantly disrupted by the pretreatment, leading to less stable crystalline structures, which positively influenced the overall degradation. Consequently, hydrolysis pretreatment notably enhanced biodegradation in PLA, whereas it exhibited minimal impact on PCL.

Impact of Hydrolysis Pretreatment on the Compostability of Biodegradable Poly(caprolactone) and Poly(lactic acid) Films

Jordan D’AMARIO, Wanwarang LIMSUKON, Anibal BHER, Rafael AURAS

The biodegradation performance of non-pretreated and pretreated commercial polyesters was evaluated under simulated composting conditions to understand how abiotic pretreatment accelerates biotic degradation. Polylactic acid (PLA) and polycaprolactone (PCL) were subjected to hydrolysis pretreatment and assessed under simulated composting conditions for 120 days. In addition to tracking CO2 evolution, polymer-intrinsic factors such as chain scission, measured by reductions in intrinsic viscosity molecular weight (𝑀𝜂), and changes in crystallinity (Xc) were also evaluated for both non-pretreated and pretreated samples during the biodegradation process. Hydrolysis pretreatment resulted in a reduction of initial 𝑀𝜂 and an increase of initial Xc for all polymer samples. The initial decrease in 𝑀𝜂 was particularly marked for PLA, which showed about 30% decrease, while PCL exhibited a reduction of just around 7%. Regarding initial Xc, the most significant increase was also seen in PLA, which jumped from approximately 0% to c. 30%. Hydrolysis of semi-crystalline polymers primarily affects the amorphous region, where elevated temperatures allow water to break polymer chains easily. However, for PLA, the disruption of the crystalline structure leads to a less stable type of crystal, probably due to an increase in the rigid amorphous region that enhances the overall biodegradation process. The effect of pretreatment on the biotic phase showed minimal differences for PCL but a noticeable overall increase in biodegradation for the pretreated PLA.

Did you find this article useful?

You Might Also Be Interested In

Tag List
  • auras,
  • auras lab,
  • food packaging,
  • packaging,
  • research,
  • school of packaging,
  • soils & composting
Michigan State University
  • Spartans Will.
  • © Michigan State University

MSU is an affirmative-action, equal-opportunity employer, committed to achieving excellence through a diverse workforce and inclusive culture that encourages all people to reach their full potential.

Michigan State University Extension programs and materials are open to all without regard to race, color, national origin, gender, gender identity, religion, age, height, weight, disability, political beliefs, sexual orientation, marital status, family status or veteran status. Issued in furtherance of MSU Extension work, acts of May 8 and June 30, 1914, in cooperation with the U.S. Department of Agriculture. Quentin Tyler, Director, MSU Extension, East Lansing, MI 48824. This information is for educational purposes only. Reference to commercial products or trade names does not imply endorsement by MSU Extension or bias against those not mentioned.

The 4-H Name and Emblem have special protections from Congress, protected by code 18 USC 707.

We comply with the Federal Trade Commission 1998 Children’s Online Privacy Protection Act (COPPA).
